Brand: HKS

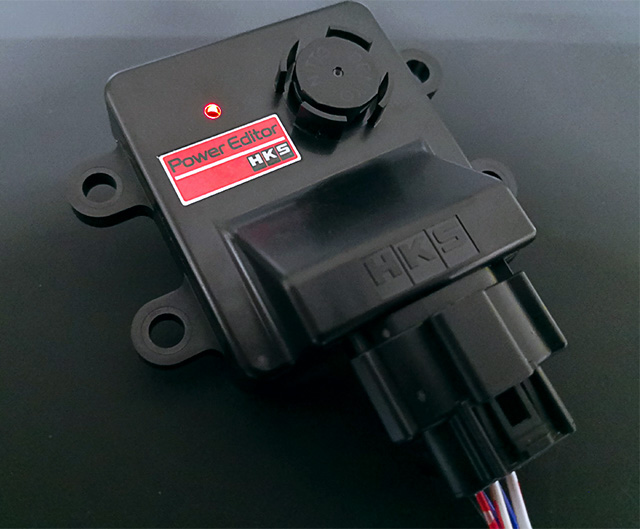

Product: Power Editor Boost Controller – GR Yaris GXPA16 Gen 2 Kouki Model
Part Num: 42018-AT023
SPECIFICATIONS:
Series: Power Editor
PRODUCT NOTES:

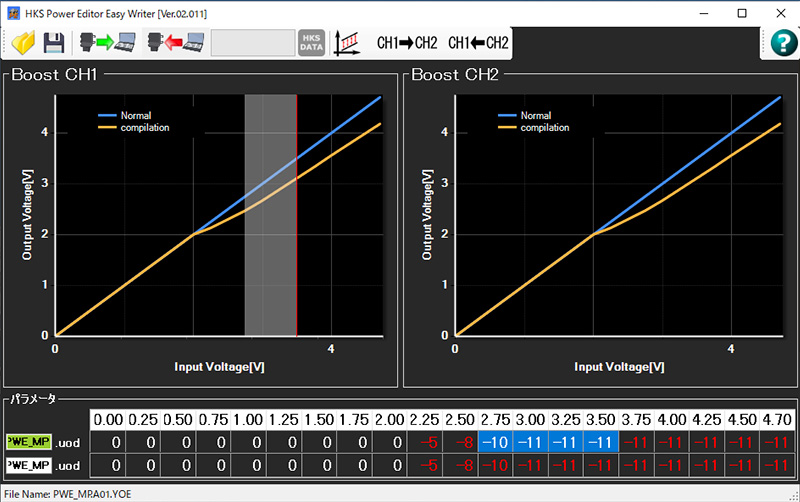

Easy Writer downloaded to Computer required to edit map.
Download: https://www.hks-power.co.jp/en/support/easywriter/index.html
Vehicle specific Installation Manual PDF: https://www.hks-power.co.jp/product_search/product/download/5661/en/42018-AT023_e.pdf

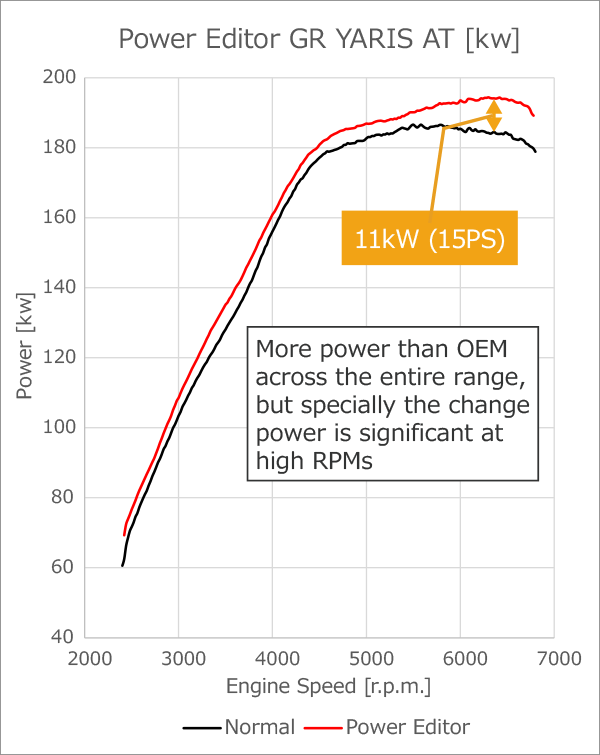

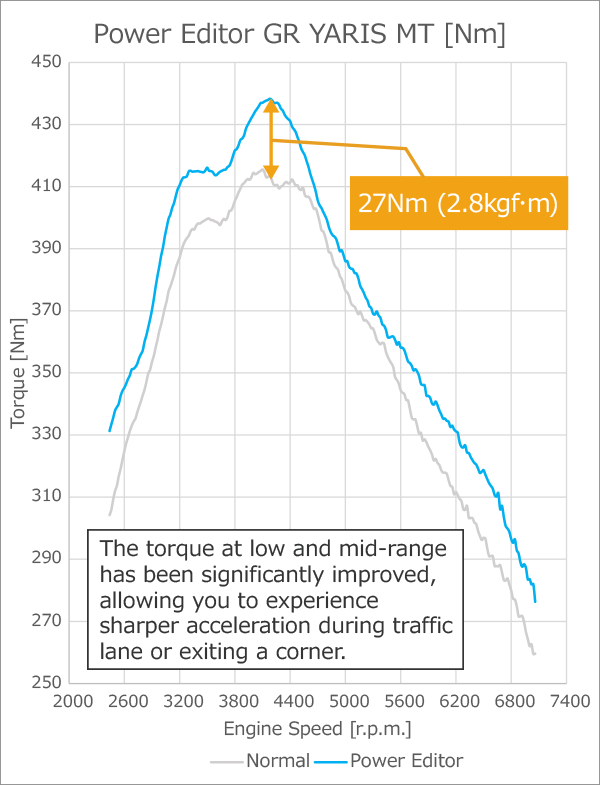

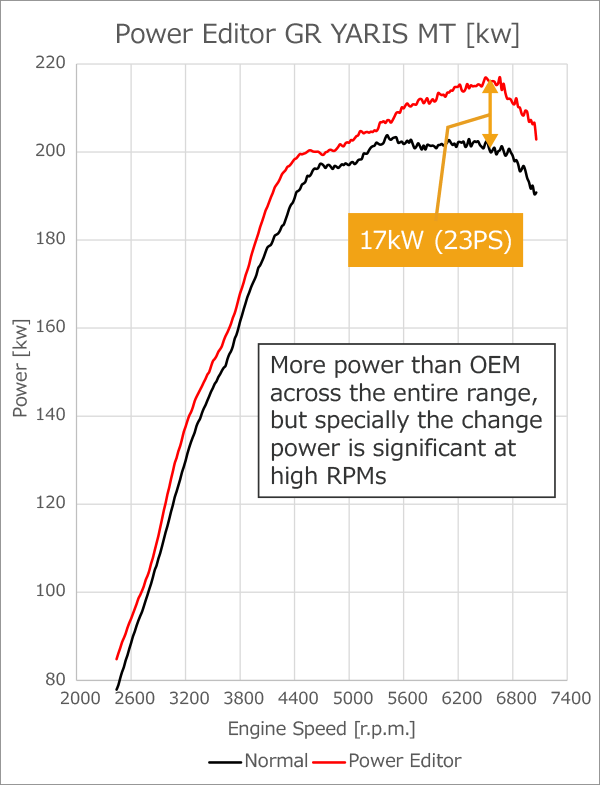

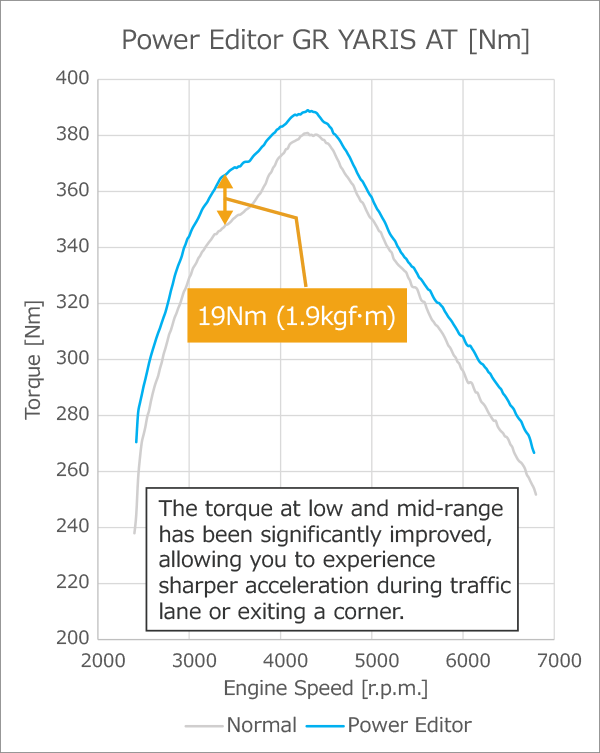

■Performance Data for MT
Preset Data Overview & Specifications
- HKS data preset for GR YARIS MT/AT (Japanese model)
| Stock | Power Editor | |
| Max change (Power) | － | 17kW(23PS)/6660rpm |
| Max change (Torque) | － | 27Nm(2.8kgf・m)/4240rpm |
| Max Power | 204kW(277PS)/5420rpm | 217kW(295PS)/6660rpm |
| Max Torque | 416Nm(42.4kgf・m)/4100rpm | 438Nm(44.7kgf・m)/4180rpm |
| Max Boost pressure | 167kPa(1.70kgf/cm²) | 181kPa(1.85kgf/cm²) |
*Measured on our chassis dynamometer (at 5th gear) Vehicle equipped with SLD Type I (4502-RA002). Actual results may vary depending on measuring equipment, individual vehicle differences, and weather conditions.
