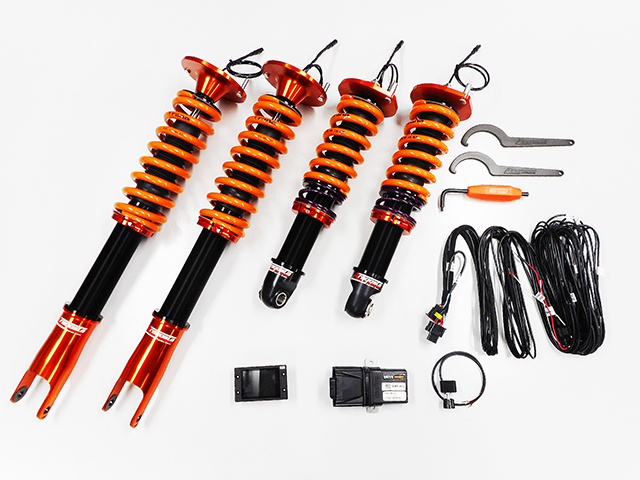

Aragosta Type SA-ACE Coilover Suspension Kit Pillow Ball Mount – R35 GTR

Brand
Aragosta

Compatibility
R35 GTR

OEM Part Number
3AAA.NH.T1.111

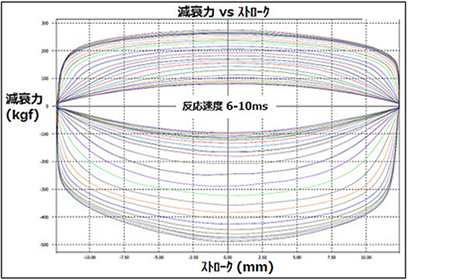

The ACE (Active Controlled Electronics) model is an electronically controlled damper that performs independent damping control. The highly sensitive multi-axis G sensor and the DDA valve built into the damper have the world’s fastest reaction speed of 6 to 10 ms, intuitively responding to any rapidly changing road conditions. In addition to individually controlling each damping force, the instantaneous change of roll/pitch contributes greatly to improving stability during braking, control performance during entry, clipping point tracing, and exit speed during the series of cornering actions. Performance precision is universal even for uneven roads and bumps. The settings can be easily made by simply
selecting the five-stage switch from soft to hard programmed for front and rear damping force, roll, and pitch on the LCD monitor. Depending on the combination, you can pursue your preferred driving style from street to circuit use. In addition, the memory function allows you to save five types of settings, allowing you to instantly complete the setup according to the field.

Sturt Specifcations

Front: Fix Pillow Ball Upper Mount
Rear:  Fix Pillow Ball Upper Mount
Spring Rate: F14kg  R8kg
Lowered Amount -15mm Front and -20mm Rear
Adjustable Amount Front – +20/-20Rear – +30/-35
Front Material: Aluminum Kashima coated/Upright shock/Integrated coilover
Rear Material: Aluminum Kashima coated/Upright shock/Integrated coilover

・Semi-active suspension with a completely original design
・Includes a dedicated ECU controlled by a multi-axis G sensor and the latest algorithm
・Instantly controls roll/pitch/front/rear damping force based on dedicated ECU information
・Realizes a reaction speed that far exceeds that of the standard due to the unique DDA valve
・Includes an LCD monitor that allows free setting
・Memory function that can store 5 settings. (Operated by touching the screen or multi-function button)
・Full length adjustment function/rana spring standard equipment
・Specifications can be changed when ordering

Please Note: the product is Made to Order
