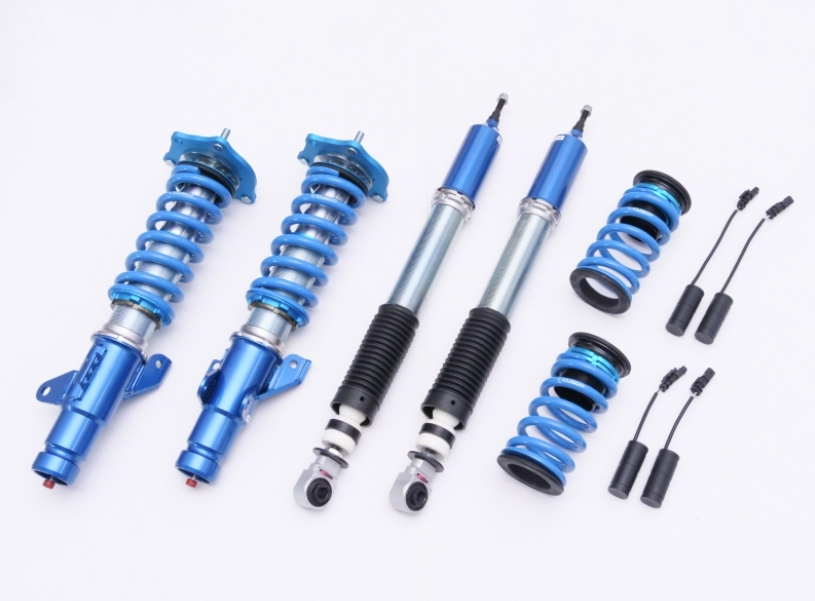

Cusco Sports S Coilover Suspension Kit – Honda Civic Type R FL5 FK8

Brand
Cusco

Compatibility
Honda Civic Type R FL5
Honda Civic Type R FK8

OEM Part Number
3C4-64S-CN

Features

• Monotube shock absorber

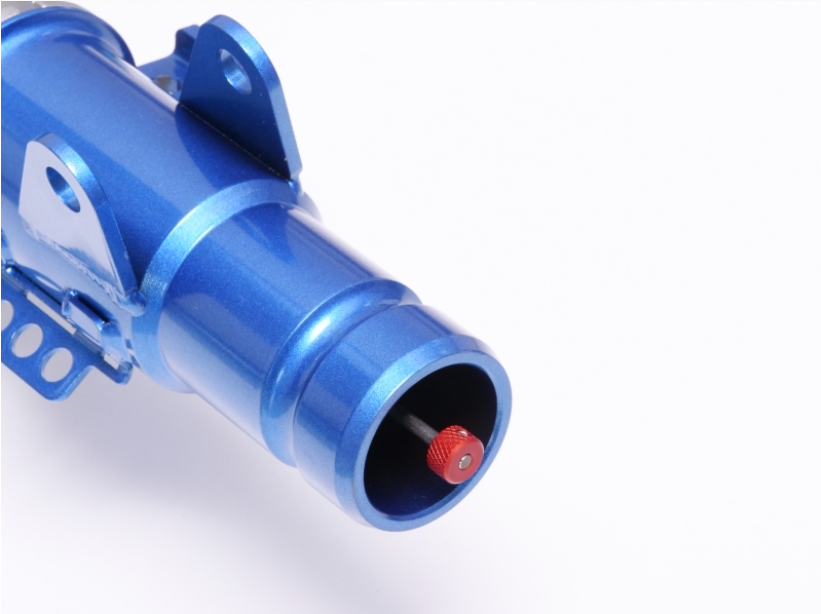

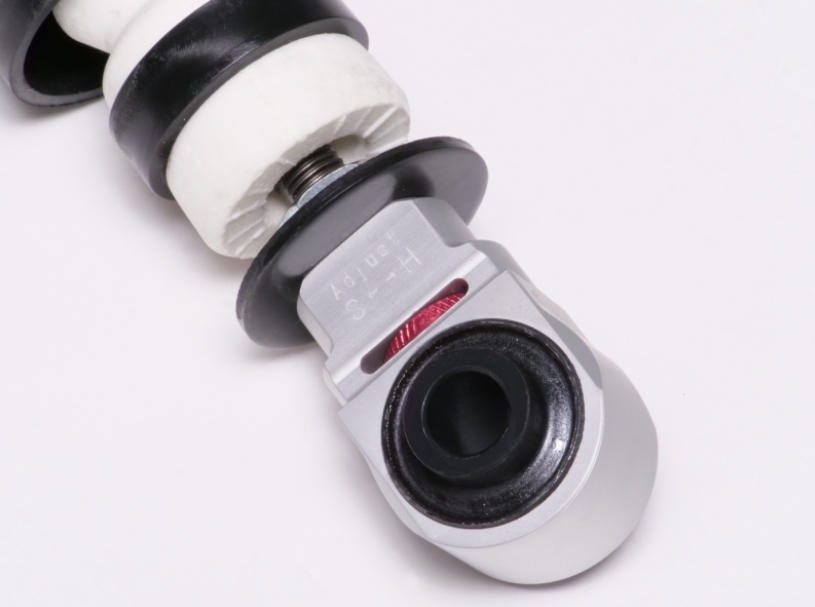

• 24 levels of damping adjustment
• Adopting the newly developed CUSCO SPORT “Blue spring”
• Full-length adjustable vehicle height adjustment
• Ram type (inverted type) shock absorber
  *Front strut type only

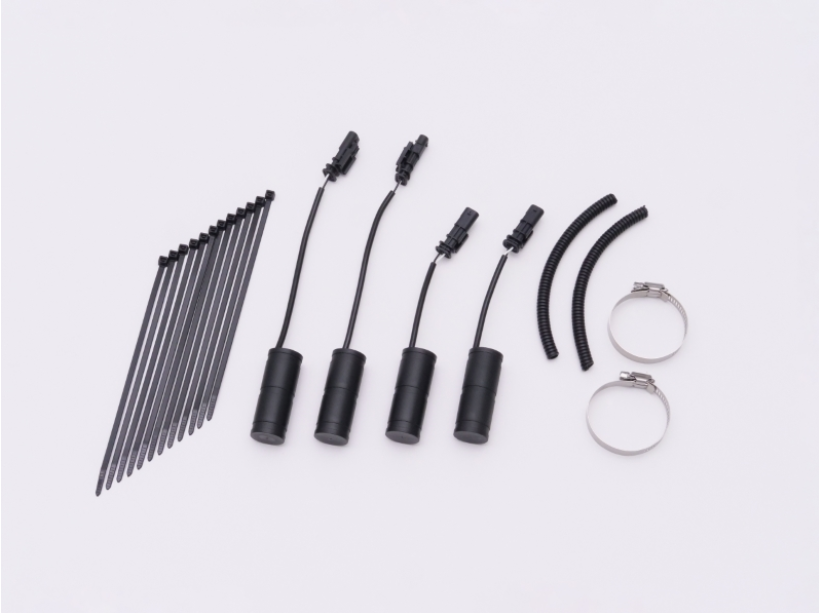

• Comes with Suspension warning light canceller

CUSCO SPORT S development concept

• While maintaining the design concept and specifications of SPORT R, the damping force, spring rate and stroke have been set for street use, targeting a wider range of users.
• A setup targeted at sports driving with sports radial tires.
• Considering use on the street (noise, ride comfort, etc.), reinforced rubber upper mounts are used for the rear upper mounts. (Used for both front and rear on wishbone-type vehicles)
• In order to respond firmly to large inputs, a large diameter piston is used to generate stable damping force.

Recommended for those who:

• Those who mainly use sports radial tires for sporty driving. (For those who mainly use S tires, we recommend SPORT R.)
• For those looking for a comfortable ride around town or when commuting.

Specifications
[Height adjustment]
Front: Full length adjustment
Rear: Screw spacer

[Damping force adjustment]
Front: 24
stages Rear: 24 stages

[Upper mount]

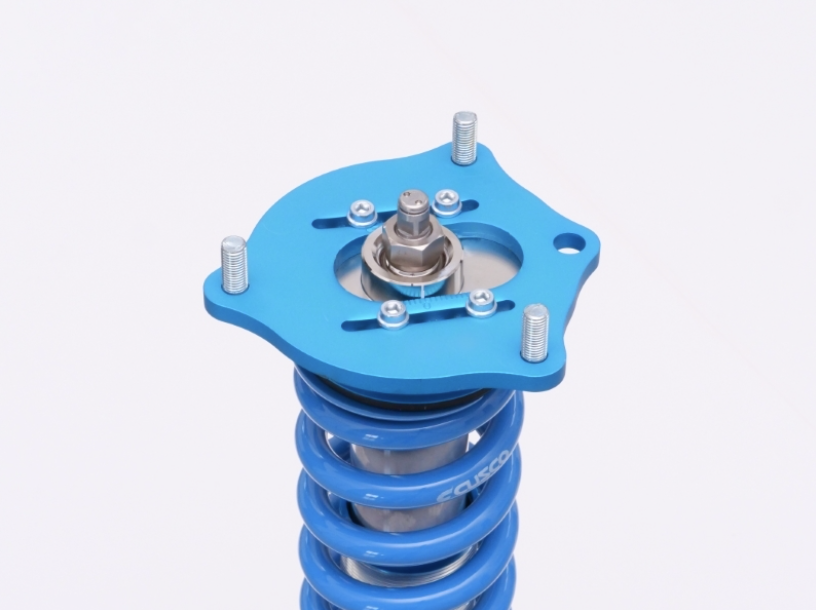

Front: Camber adjustable pillow ball upper mount
Rear: —

[Standard spring]
Front: 8 kgf/mm (065-200-08E)
Rear: 8 kgf/mm (065-180-08E)

[Optional Spring rate]
Front: 7.9 kgf/mm
Rear: 6 (L200)/7.9,10,11,12 (L180) kgf/mm

[Recommended height adjustment range*]
Front: -30~ -10mm
Rear: -30~ -10mm

[Reference height]
Front: -20mm
Rear: -20mm

[Maximum height adjustment range]
Front: -32~ 0mm
Rear: -50~ -10mm
