HKS 2.2L Stroker Kit 4B11 – Mitsubishi EVO 10 CZ4A

Brand: HKS
Product: Capacity Upgrade Kit 2.2L Full Kit – CZ4A
Part Num: 21004-AM003

SPECIFICATIONS:

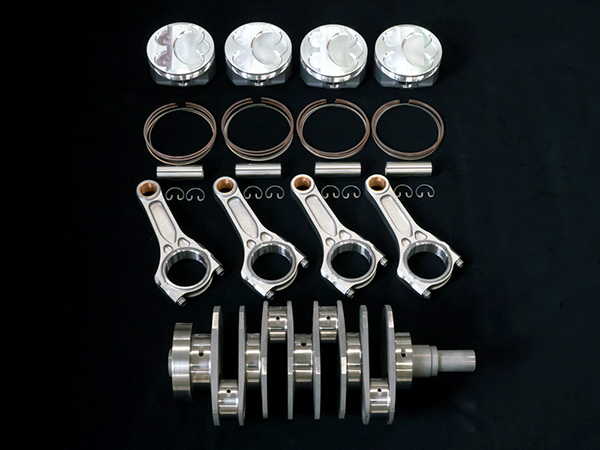

Included:
– HKS Piston Kit
– HKS Forged Full Counter Crankshaft
– HKS I-Cross Section Connecting Rods Kit
– Pistons –
Piston Type: Forged
Piston Bore (mm): 86.5 (OEM 86)
Pin Bore (mm): 23.0
Displacement (cc): 2139 (OEM 1998)
Piston Bowl (cc): 12.1 (OEM 4.5)
Oil Ring: 2 pieces type
Compression Ratio (e):
– With 1.0mm Gasket: 8.7
– With 1.2mm Gasket: 8.6
– With 1.6mm Gasket: 8.4

– Connection Rods –
Type: I beam forged cracked
Material: Carburised Chrome Molybdenum Steel (OEM Chrome Steel)

– Crankshaft –
Type: Full Counterweighted
Stroke (mm): 91 (OEM 86)
Materials:
– HKS: Special Chrome Molybdenum Steel + Isonite (salt bath nitriding)
– OEM Chrome Molybdenum Steel

PRODUCT NOTES:
– Boring, Honing machining: Required
– Full flow modification: Not Required

FEATURES:

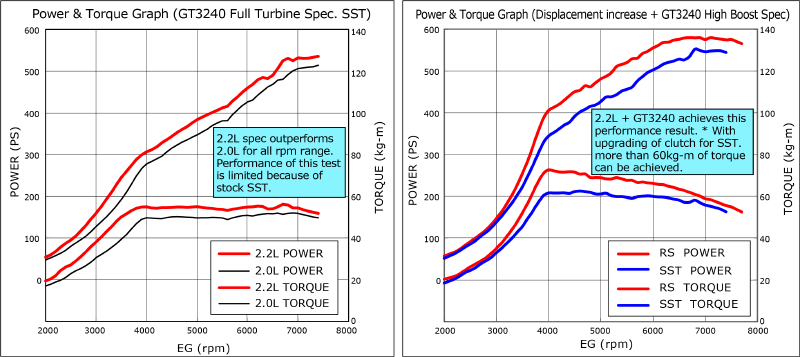

Big benefits from increased displacement!
– Kit increases 4B11 displacement from stock 1, 998cc to 2, 139 The difference in displacement creates a massive difference in torque and also makes it possible to match large volume turbos for maximum power. HKS tests have found that torque outputs of over 70Kgm is possible.
NOTE: HKS demo car with this kit and GT3240 full turbo kit has already proven its ability by achieving a time of 57 seconds at Tsukuba 2000 circuit.

Race Specification at an incredible price!
– In order to have as many people enjoy this kit as possible, a new machine has been invested in to reduce manufacturing time helping to reduce cost.
NOTE: Many HKS competitors use an OEM crank to reduce costs whilst increasing stroke. The HKS Crank has been designed and made to racing specifications using the most suitable materials and manufacture ring processes. Forged pistons, Forged conrods and a crank made from special forged materials allows this kit to be suitable to even 600PS

Circuit test proven & Made in Japan reliability!
– After plenty of testing on the engine dyno, the kit was tested in conjunction with the GT3240 kit to produce the 600PS CZ200S which went on to perform at various time attack events. This data was analyzed to deliver maximum performance but most importantly reliability. Naturally, this item is made in Japan at HKS’ internal manufacturing facilities.
