Description
Brand: HKS

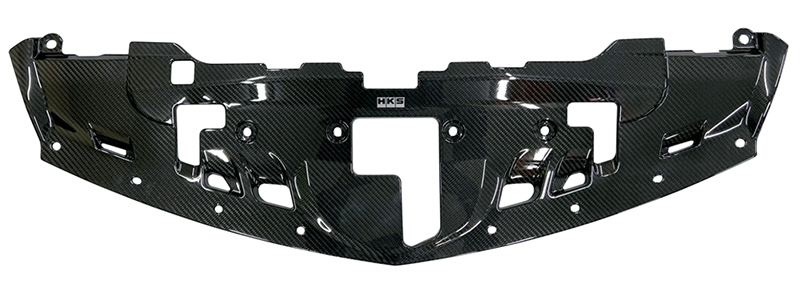

Product: Engine Dry Carbon Intake Duct Plate – Nissan Z RZ34
Part Num: 70026-AN004
SPECIFICATIONS:
Material: Dry Carbon Fiber
Weave Pattern: Twill
【Concept】
- The Carbon Air Guide has additional fresh air inlets to direct fresh air into the additional ducts.
- With the additional modification of the stock airbox, the air intake opening area is approximately 1.8 times larger than the stock opening.

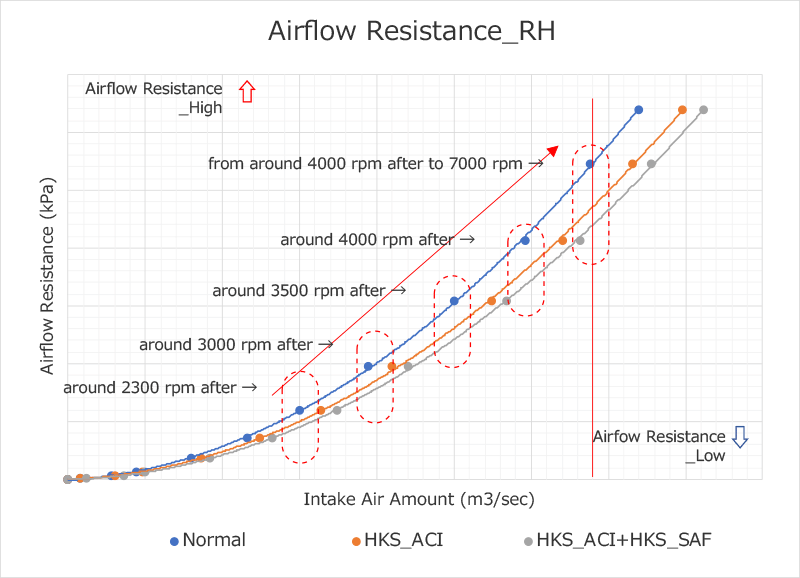

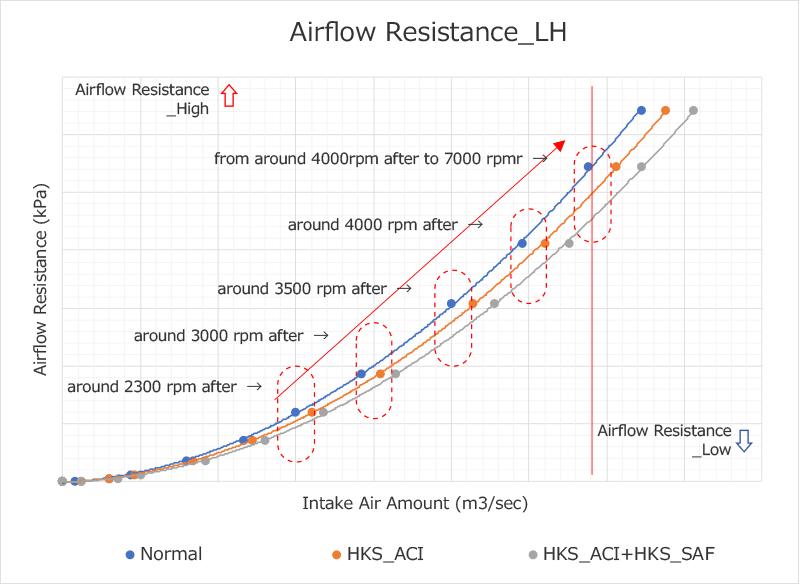

- Designed to reduce ventilation resistance, while avoiding any negative impact on the factory control.
●Output Performance
- Output change within stock control range
- Around 5,800 ~ 5,900 rpm
Stock Vehicle: 312.8 kW (425.4 PS)
Carbon Air Cleaner Inlet + HKS SUPER AIR FILTER: 316.7 kW (430.7 PS)
3.9 kW (5.3 PS) output increased (In-house test result)
●Field test comparison
- The difference with and without the Carbon Air cleaner inlet is noticeable.
Acceleration Performance: 4th gear fixed 2500 rpm-rev acceleration difference
Normal VS Carbon Air Cleaner Inlet + HKS SUPER AIR FILTER equipped vehicle
| Measuring Speed | Norm at | HKS | NOrmal Section Time | HKS Section Time | Section Time Difference | Normal Reaching Distance | HKS Reaching Distance | Reaching Distance Difference | |
| km/h | rpm | rpm | sec | sec | sec | m | m | m | |
| Initial Velocity | 60 | 2548 | 2558 | 0 | 0 | – | 0 | 0 | – |
| Interm ediate Velocity | 120 | 5048 | 5063 | 5.29 | 5.07 | -0.22 | 132.25 | 126.75 | -5.5 |
| Terminal Velocity | 167 | 6917 | 6903 | 9.99 | 9.59 | -0.4 | 314.96 | 302.35 | -12.61 |
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 78 × 80 × 15 cm |
Reviews (0)
Fit for the Following Vehicles
| Make | Model | Year |
|---|---|---|
| Make | Model | Year |
| Nissan | Z | RZ34 VR30DDTT 2022 ~ |
