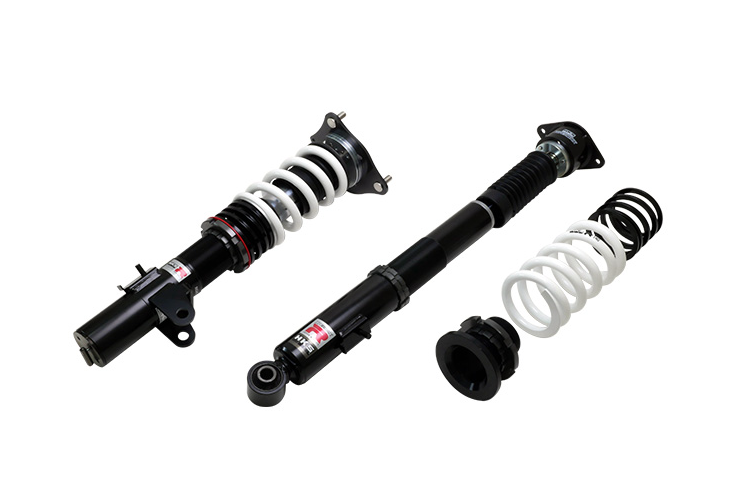

SKU: 80310-AH005CHKS Hipermax R Coilover Suspension Kit – Honda Civic FL5 Type R
Only 1 left – ready to shipiIn our Ingleburn (NSW) warehouse – ready for fast dispatch or click & collect.
Original price was: $5,450.00.$4,990.00Current price is: $4,990.00.
1 in stock (can be backordered)
Delivery & pickup
Click & collect from our Ingleburn (NSW) workshop is available at checkout.
Secure payment options
afterpayPay by card or PayPal, or split it into 4 interest-free payments with Afterpay.
Why buy from ASI?
- Genuine JDM parts direct from Japan
- Our own warehouse in Japan
- Fast dispatch & click & collect in Ingleburn
- ★ 5.0 on Google (37 reviews)
Can’t find the part you need?
We specialise in sourcing rare and discontinued JDM parts. Send us the part number or your vehicle details and we will track it down.
Description
Brand
HKS
Compatibility
Honda Civic FL5 Type R
OEM Part Number
80310-AH005C
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | – | – |
| Height adjustable lower bracket | × | 〇 |
| Upper mount | Spherical bearing | Spherical bearing |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | – | 〇 |
| Helper spring (Spring rate N/mm) | 〇 (19.8) | 〇 (19.8) |
| Factory *2 | Test data | Adjustable range High – Low *3 | Drivable range High – Low *4 | ||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 657 | 640 | 660 ～ 636 | 660 ～ 651 |
| Against stock | -18 | -35 | -15 ～ -39 | -15 ～ -24 | |
| REAR | Ride height *1 | 659 | 640 | 680 ～ 637 | 680 ～ 637 |
| Against stock | -13 | -32 | 8 ～ -35 | 8 ～ -35 |
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 137 ( 14.0 ) | 137 ( 14.0 ) |
| Free height (mm) | 150 | 150 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | +20 ( 2 ) | +20 ( 2 ) |
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1172 / 530 | 294 / 280 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 58 / 41 | 88 / 61 |
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 100 × 50 × 35 cm |
Reviews (0)
Fit for the Following Vehicles
| Make | Model | Year |
|---|---|---|
| Make | Model | Year |
| Honda | Civic | FK8 / FL5 Type R |
