HKS Stroker Kit 1.75L Low Comp Step 3 – Toyota GR Yaris GR Corolla

Brand: HKS

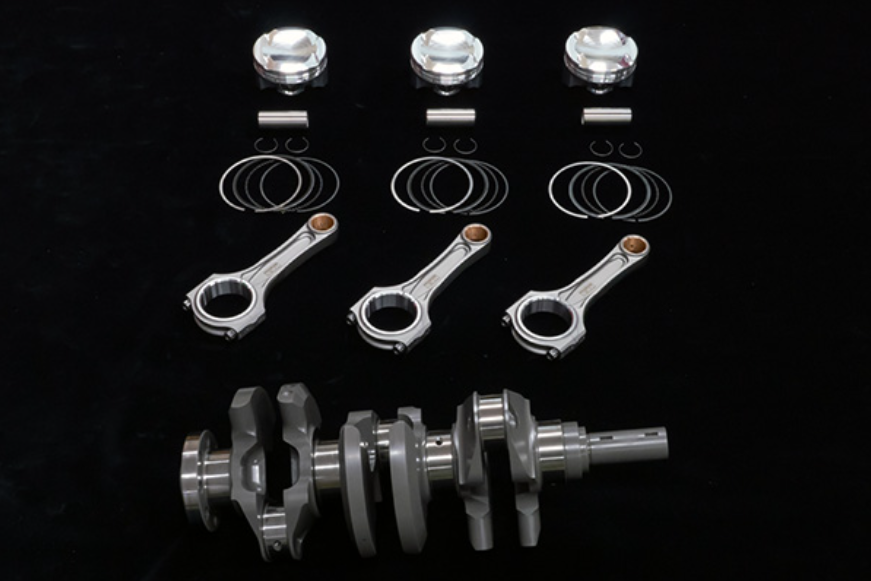

Product: Capacity Upgrade Kit G16E 1.75L Low Comp Step 3 Full Kit – GR Corolla GZEA14H GR Yaris GXPA16
Part Num: 21004-AT010

SPECIFICATIONS:
Version: 1.75L Low Comp Step 3
Displacement (cc): 1746 (OEM: 1,618)

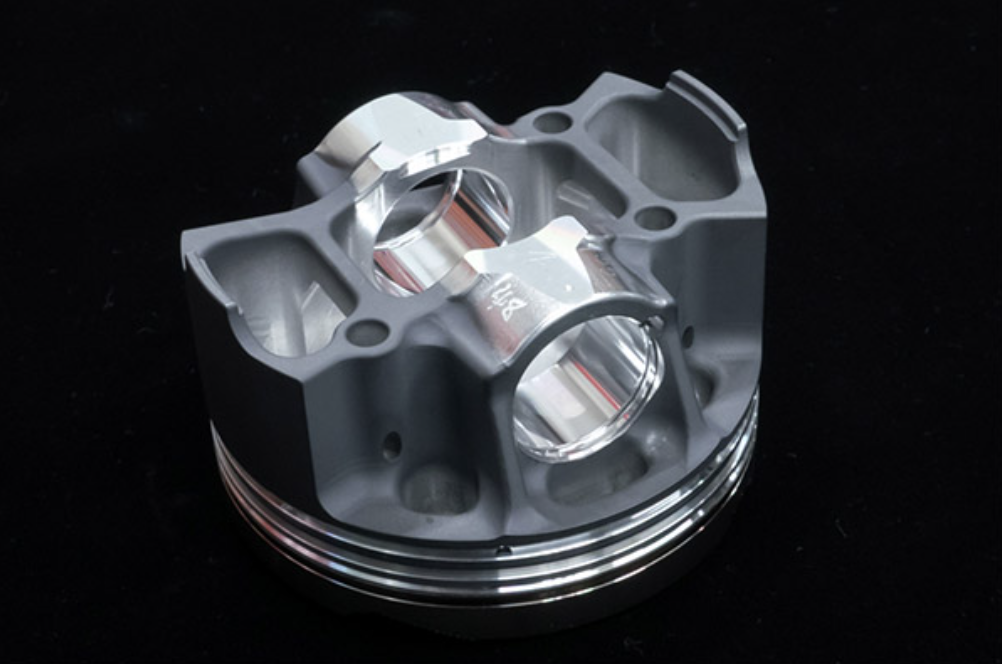

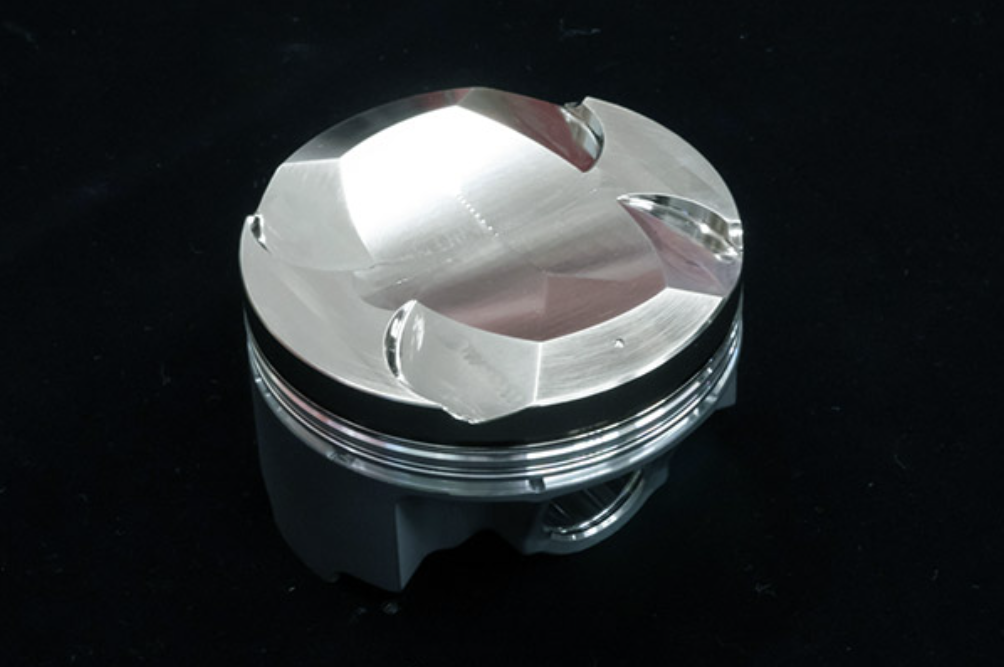

Piston Set (21003-AT008):
-Manufacturing Process: Forged A2618 Aluminum
-Piston Top Coating: Nickel Plating
-Piston Finish: 2 layer Molybdenum
-Piston Bore (mm): 88.0 (OEM: 87.5)
-Piston Weight (g): 318 (per piston)

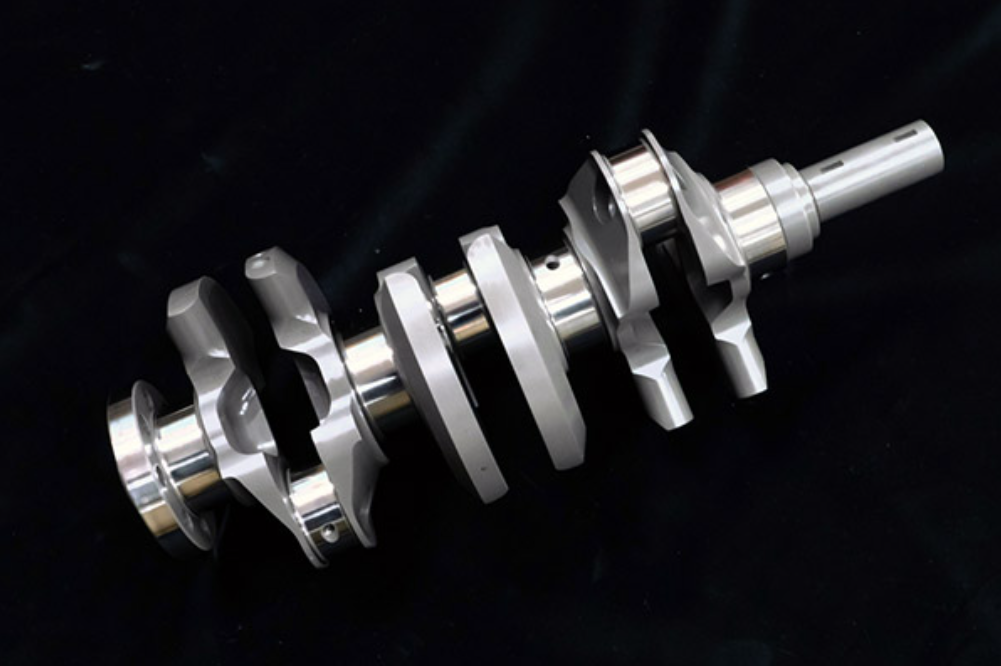

Crankshaft (23006-AT004):
-Material: Billet Forged Full Counter
-Stroke (mm) 95.7 (OEM: 89.7)

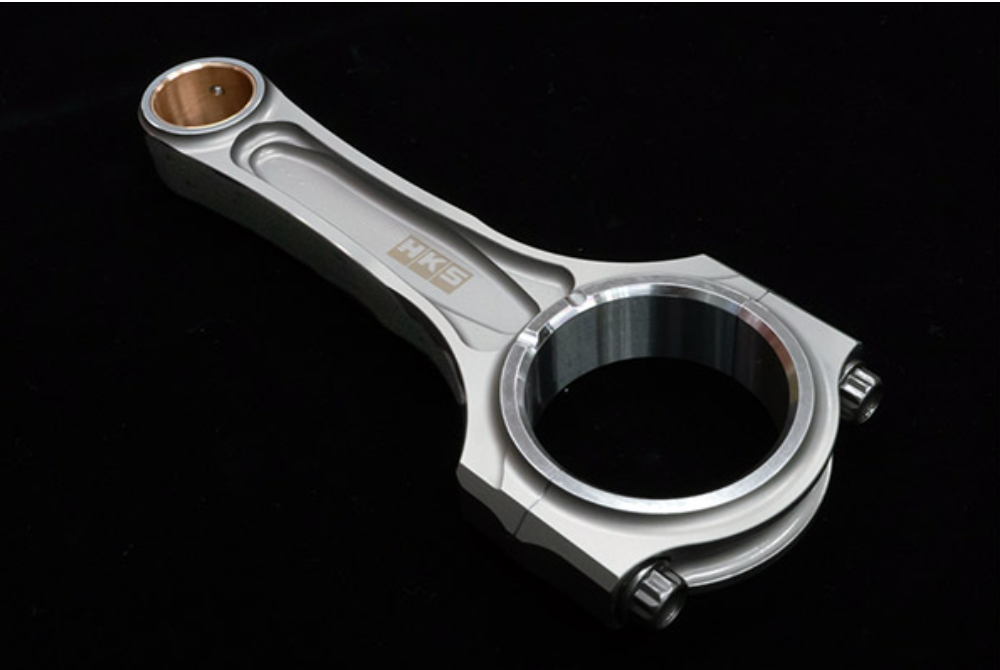

Connecting Rod Set (23004-AT003):
-Material: SNCM
-Shape: I-Beam
-Finish: WPC
Piston Ring Set (21005-AT003):
-Top Ring: Titanium Coating Type
Piston Pin Set (21005-AK011):
-Diameter (mm): 24

PRODUCT NOTES:
Compression Ratio with 0.79mm Head Gasket:
-OEM: 10.4
-HKS: 10.2

COMPATIBILITY NOTES:
-Cannot be used in conjunction with OEM Balancer Shaft
