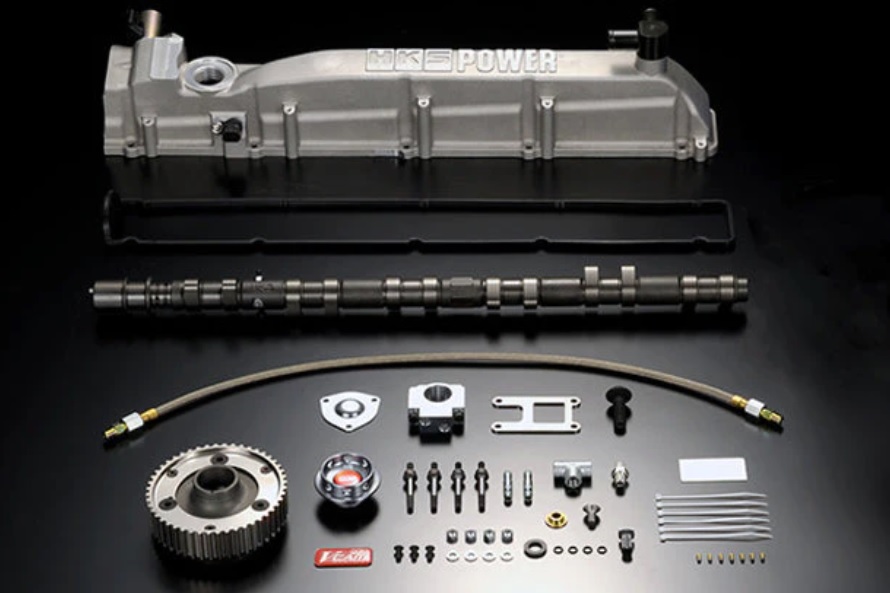

HKS V CAM SYSTEM STEP 1 WITHOUT VALCON – BNR32 BCNR33 BNR34

Brand: HKS
Product: V Cam System – Step 1
Part Number: 22007-AN020

SPECIFICATIONS:
Version: Step 1
Intake Camshaft Duration (°): 248
Valve Lift (mm): 8.6
Adjustable Valve Timing Range (°): 90 ~ 120
Intake Valve Cover Color: Unpainted
Electromagnetic Oil Control Valve Included
HKS Oil Filler Cap Included
High Precision Cam Angle Sensor Included
Misc. small parts included

PRODUCT NOTES:
Additional Items Necessary For Installation (Sold Separately): Exhaust Camshaft
– Valves and pistons may not clear when V Cam System is used in conjunction with thin head gasket or modified cylinder head.
– Exhaust Camshaft (Sold Separately) should be chosen depending on turbo choice. (Recommendations: GT-SS = 256 degree, GT2530 = 264 degree)
– Vehicle Specific F-CON Harness Sold Separately
– Maximum RPM for Step 1: 8, 000RPM (OEM Rev Limiter)
– Oil pressure cannot be maintained at a safe operating pressure when oil viscosity is low. Valve timing may not reach desired figures due to this.
– Camshaft will not advance is water temperature is below 20 degrees Celsius
– Recommended Engine Oil: Super Oil (RB), Racing Oil 10W-50
– Tension and wear of Timing Belt must be checked every 10, 000km
