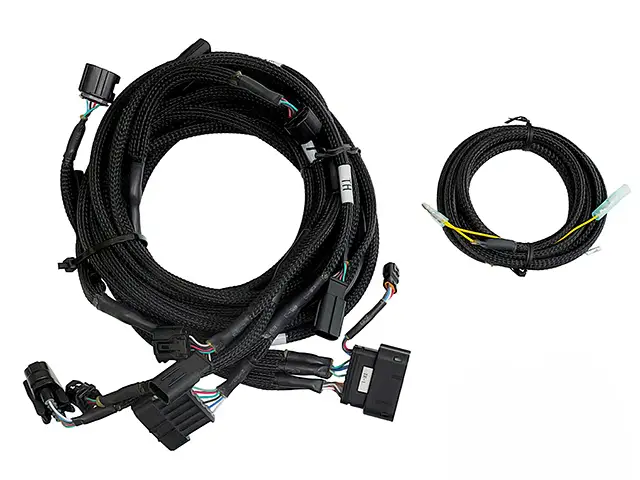

HKS Power Editor R Wiring Harness – GR Corolla GZEA14H

Brand
HKS

Compatibility
Toyota GR Corolla GZEA14H

OEM Part number
42999-AT001

A new model-specific harness that fits the Power Editor R is now available! It can be installed by simply connecting the couplers.

■Features

• By connecting the “Power Editor R Universal Main Unit (sold separately)” to the vehicle’s sensor harness, you can increase the boost.
• In addition to the rotation signal, the vehicle speed and throttle signals are also incorporated, enabling control with the optimal correction values for each RPM, gear, and throttle opening. The ability to correct the airflow signal expands the tuning range compared to the standard Power Editor.
• Using the free “Easy Writer for Power Editor R,” you can create custom data tailored to the vehicle’s individual characteristics, allowing for detailed tuning. After installation (and wiring), you can revert to the stock settings using the included reset connector for the Power Editor R Universal Main Unit.
• This product connects to the following sensor harnesses and the corresponding channels on the Power Editor R:
  • ch1: Boost pressure sensor
  • ch2: Intake manifold pressure sensor
  • ch4: Throttle sensor
  • ch5: Airflow sensor, cam angle sensor (rotation signal), and vehicle speed signal (optional connection).

*The boost pressure in the original meter will differ in the area where the intake manifold pressure is corrected by Power Editor R.
*Please purchase 42018-AK002 separately for the “Power Editor R universal unit”.
*This product and the universal unit do not contain any data. Vehicle settings will be required after installation.
