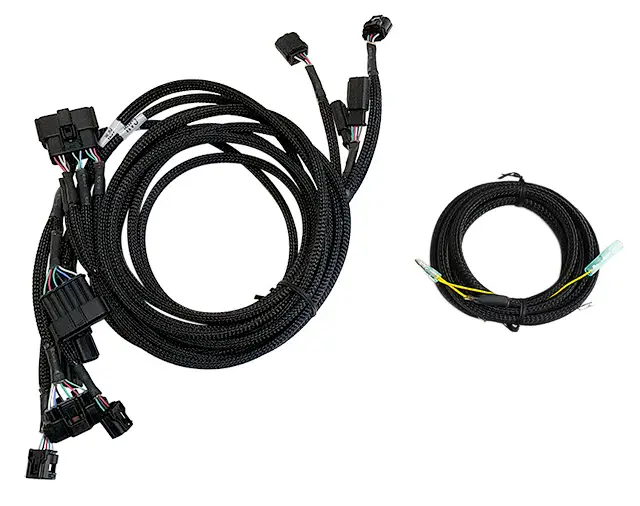

HKS Power Editor R Wiring Harness – Honda Civic Type R FL5

Brand
HKS

Compatibility
Honda Civic Type R FL5

OEM Part number
42999-AH001

A new model-specific harness that fits the Power Editor R is now available! It can be installed by simply connecting the couplers.

■Features

• Easy and quick increase of boost can be achieved by connecting to the vehicle’s sensors.
• This product can use vehicle velocity and throttle signals in addition to the RPM signal, making it possible to control with the optimum correction value for each gear and throttle opening degree.
• It allows correction of the fuel pressure signal, which provides a wider range of settings compared to the existing Power Editor.
• Easy Writer for Power Editor R (for free) allows users to create their own original data, making it possible to set up detailed settings adjusted to the individual car.
• It can be returned to the factory conditions by using the return connector included with the product even after the product has been installed.
• This product is connected to each channel of Power Editor R by interrupting the following sensor harness.
  ch1:Boost pressure sensor
  ch2:Intake manifold pressure sensor
  ch3:Fuel pressure sensor
  ch4: Throttle sensor
  ch5: Air flow sensor
  Cam angle sensor (RPM signal)
  Velocity signal (Optional connection)
