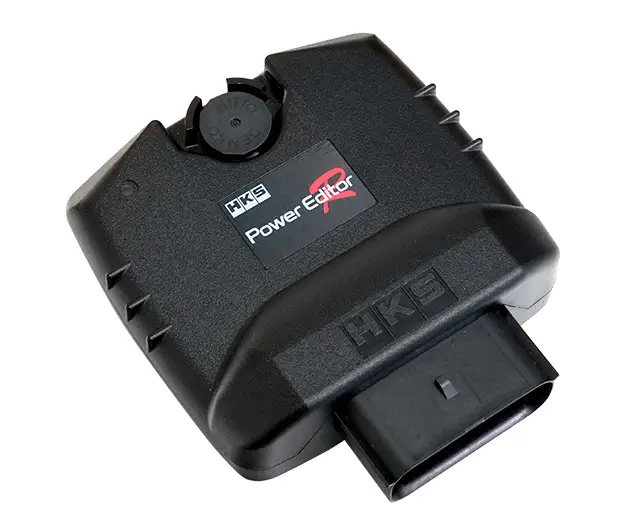

HKS Power Editor R Boost Controller Unit Only

Brand
HKS

Compatibility
Please See Vehicle Specification Harness required
Toyota GR Yaris GXPA16
Toyota GR Corolla
Honda Civic Type R FL5
Nissan 400Z Z34

OEM Part Number
42018-AK002

■Features

• By simply connecting this product to a harness that is compatible with the vehicle and then writing the set-up data into this product, you can increase the boost pressure.
• This product can use vehicle velocity and throttle signals in addition to the RPM signal, making it possible to control with the optimum correction value for each gear and throttle opening degree. (Depending on the vehicle’s signal availability).

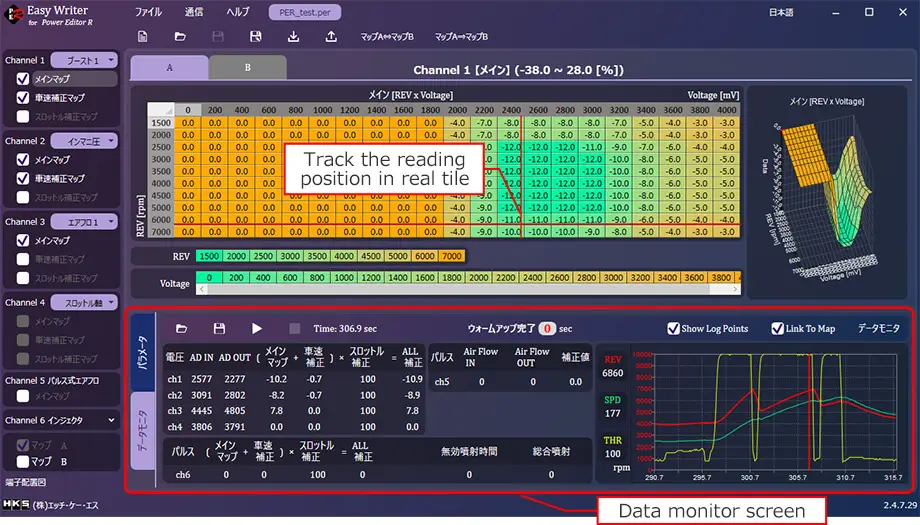

• Easy Writer for Power Editor R (for free) allows users to create their own original data, making it possible to set up detailed settings adjusted to the individual car.
• By using the harness for the map selector switch (included in the kit), you can switch between the two map sets saved in the main unit. (the switch itself is not included in the kit, so please prepare your own switch.)
• It can be returned to the factory conditions by using the return connector included with the product even after the product has been installed.


  ■Functions of Power Editor R

  • It is capable of correcting 4-channel voltage signals and 1-channel pulse-type air flow signals using RPM signals, vehicle velocity signals, and throttle signals.



  No.	Function	Qty	Remarks
  1	Voltage correction	4ch	Input/output: 0V-5V
  2	Pulse frequency correction	1ch	Input/output: 0V-5V, 250Hz～15kHz
  3	Rotation signal input (Max axis)	1ch	Input: 0V-5V or 0V-12V
  4	Vehicle speed signal input (Max axis)	1ch	Input: 0V-5V or 0V-12V
  5	Throttle signal input (Max axis)	1ch	Input: 0V-5V, Share with voltage correction ch
  6	USB communication	1 port	Exclusive use because of shared port
